DESCRIPTION

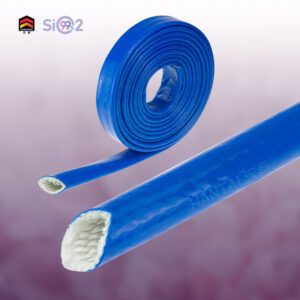

Hantai Quartz Fiber Sleeve is braided by Quartz fiber, SiO₂ ≥99%. It has outstanding high temperature resistant and outstanding electrical insulation properties. Its dielectric constant and dielectirc loss factor is the best of all mineral fiber. Working temperature: Continues working at 1200℃, short term 1700℃.
HANTAI Quartz sleeve is widely used in aerospace, military industry, semiconductor, oil chemical industry, building construction, electrical and electronic as thermal insulation and high temperature filtration material.
CHARACTERISTICS
| PRODUCTS | Quartz Fiber Sleeve |
| HANTAI PART NO# | HTE21-** (** refers to the inner diameter=ID) |
| MATERIALS | Quartz Fiber ( SiO2 content ≥ 99.9%) |
| CONSTRUCTION | Braided |
| SIZE RANGE | 1mm – 70mm |
| WORKING TEMPERATURE | Continuous working at 2192°F (1200°C), peaks at 3090°F (1700°C) |
| COLOR | White |
| ROLL LENGTH | ID 1mm ~ 35mm: 50-100 meters / roll; ID 40mm ~ 70mm: 30-50 meters / roll |
| AVAILABLE OPTIONS | Special bulk packaging (maximize productivity/minimize waste) Pre-cut short length |
| TYPICAL INDUSTRIES |
Hot Glass Processing, Aerospace, Aviation, Military, Semiconductor, Petrochemical, Construction and Electronics etc. |
